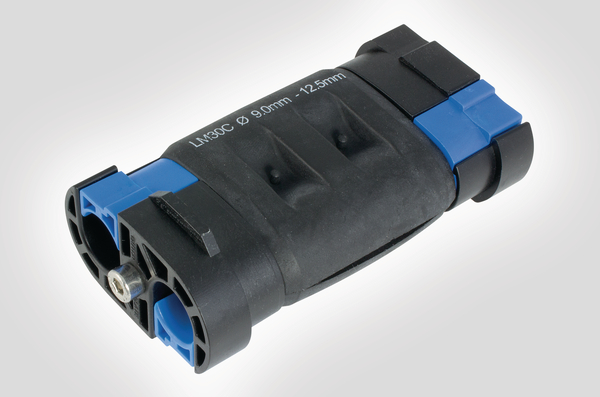

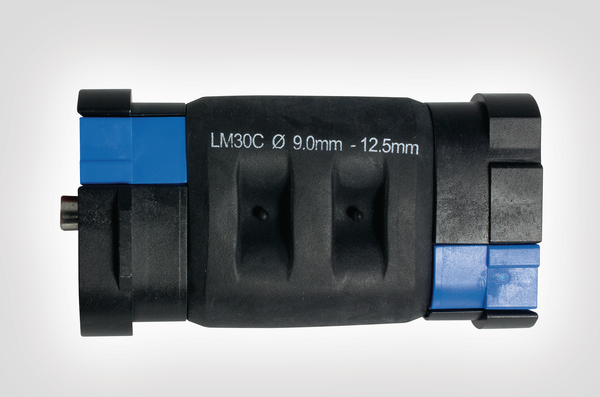

Cablelok LM30C 9.0-12.5mm x10
Art.-Nr. 857-50208 | CABLELOK-LM30C-10 Detaljer

  • Cable range coverage from 4.0mm to 15.0mm
  • Dual outlet for loop through applications
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets.
Visa mer
Cable ∅ max 12.5mm
Cable ∅ min 9.0mm
Colour Black (BK)
Content 10 X CABLELOK-LM30C, 1 x Allen Key, 20 x Lubricating Wipe
Material Chloroprene Rubber (CR)
Pack Cont. 10pcs.
Package Content packed in bag
PART DESCRIPTION CABLELOK-LM30C-10
Port LM
Port count 2
Product Family LM Port Series
Product Group LM Port Cablelok
Short Description Cablelok LM30C 9.0-12.5mm x10
Technical Description The LM Port Cablelok is a mechanical seal manufactured from Neoprene rubber, Minlon and Acetal. There are 5 Cablelok's which cover a cable range of 4.8mm – 15.0mm four of which have a dual outlet for loop through applications, the fifth being a port plug for blocking unused LM sized drop ports.
Variant Oval - LM
Weight/Unit 0.143kg
ELV compliant (Article 4 - 2) YES
Hazardous good No
Specifications
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660113079
Order Unit pcs.
Packaging 1 - Height (m) 0.08m
Packaging 1 - Length (m) 0.33m
Packaging 1 - Qty 10
Packaging 1 - Type pack
Packaging 1 - Volume (m³) 0.0062
Packaging 1 - Weight (kg) 1.43kg
Packaging 1 - Width (m) 0.235m
EFO Norway block number 100600
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
UNSPSC Key 43202218
