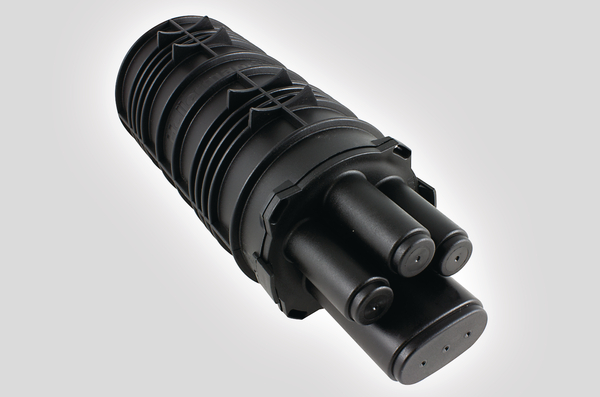

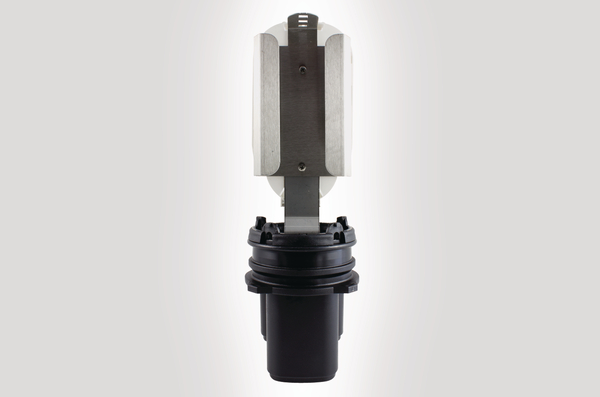

4 port closure with 1 tray and fibre storage basket
Art.-Nr. 857-00616 | FSTTB-AXBFA11 Detaljer

  • Maximum 12 fibre splice capacity
  • 3 round ports and 1 oval port
  • Fibre storage basket for loop through applications
  • Supplied with 1 x Hellapon Small Tray with 3A Splice Bridges
  • Maximum 12 splices per tray
  • Splitter accommodation
  • Cablelok compatible for all port sizes
  • Quick release cover
Visa mer
Colour Black (BK)
Content FST 4 Port Base
A-Length Cover (Dome)
Quick Release Clamp
Sealing ’O’ Ring
Fibre Storage Basket
Tray Support Frame
1 x Hellapon Small Trays with 3A Splice Bridges
Anchor Fixing Kit
Transportation Tubing
Isopropyl Alcohol Wipes
Desiccant
Installation Guide
Marker Kit
Red Marker 1 - 12
Green Marker 1 – 12
Material Polypropylene (PP)
Method of Sealing Cablelok
Pack Cont. 1Set
Package Content packed in kit
PART DESCRIPTION FSTTB-AXBFA11

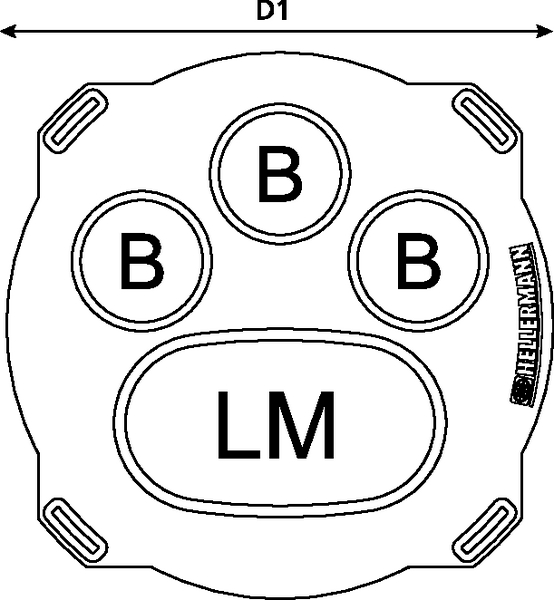

Port LM, B
Port count 1, 3
Product Family A Length
Product Group FST 4 Port Closure
Qty Trays 1
Short Description 4 port closure with 1 tray and fibre storage basket
Splice Capacity 12

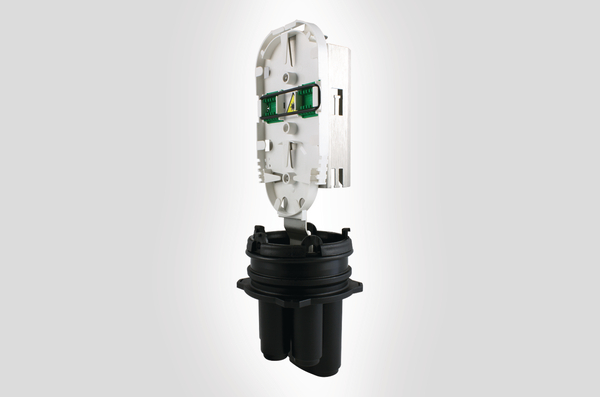

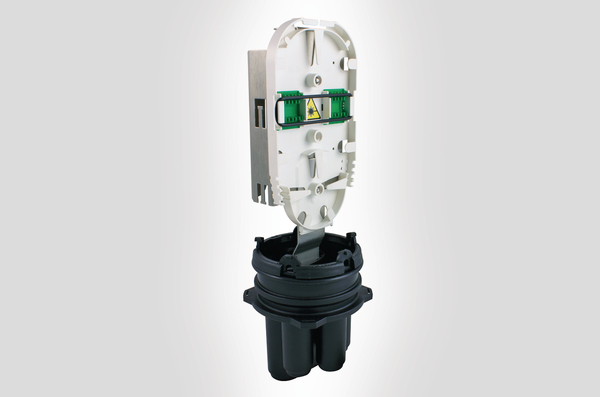

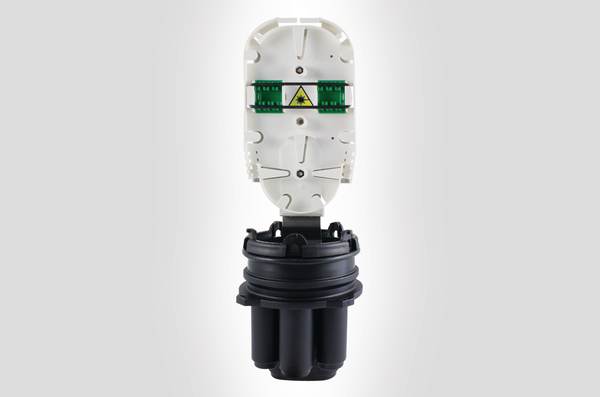

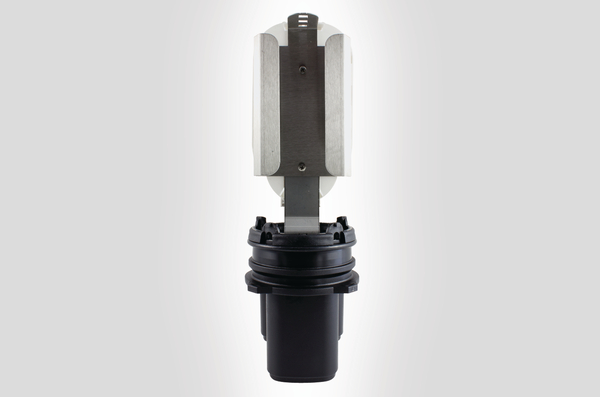

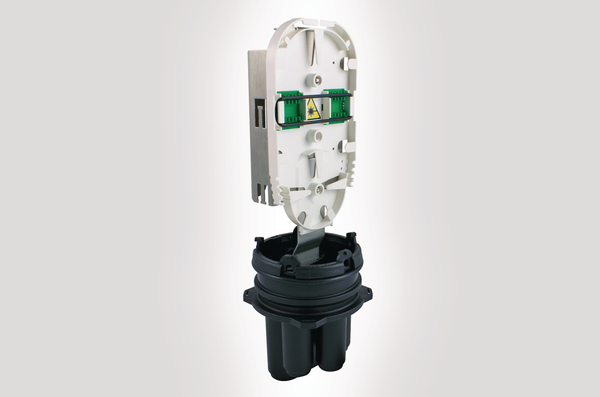

Technical Description The FST 4 Port closure is supplied with a Polypropylene base. The base configuration of 3 round ports and 1 oval port covers a cable diameter range of 4.0 – 16.5mm when using Cablelok mechanical seals and 6.0 – 22.0mm when using heatshrink. The mounting system is manufactured from Grade 304 stainless steel and is supplied with 1 x Hellapon Small Tray with 3A Splice Bridges giving a maximum of 12 fibre splices. The fibre basket provides storage space for the storage of fibre loops within the closure. The tubed closure and the position of the mounting system allows for ease of access and traceability of the fibre on to the trays. The trays are white which makes it easy to see the colour of the fibre elements as they are routed through the fibre management system and on to the trays.
Type of Tray Hellapon Small
Variant Outdoor Enclosure

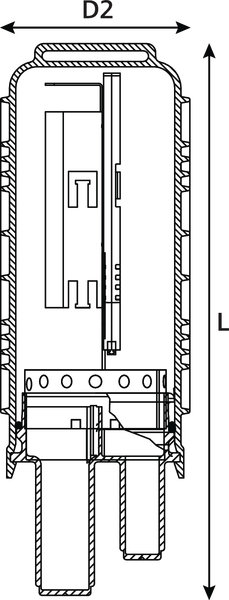

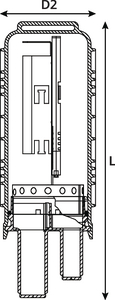

Length (mm) 310mm
Width D1 110mm
Width D1 4.3"
Width D2 110mm
Width D2 4.3"
Hazardous Goods No
Country of Origin GB
Customs Number 85176200
GTIN-13 / EAN 5022660112430
Packaging 1 - Weight (kg) 1.0kg
ETIM 7.0 Key EC002067
ETIM 8.0 Key EC002067
ETIM 9.0 Key EC002067
UNSPSC Key 43223338
