Cablelok R15D(2) 2.0-3.0mm x1
Art.-Nr. 857-50226 | CABLELOK-R15D-01 Detaljer

  • Cable range coverage from 1.7mm to 9.5mm
  • Multi-hole versions available to allow 2 cable drops from the same port
  • Multi-hole cable range coverage from 1.7mm – 2.0mm (R10D), 2.0mm - 3.0mm (R15D) and 3.8mm – 4.8mm (R30D)
  • Port closure plug available
  • Supplied in multiples of 1 and 10
  • Supplied with installation lubricant sachets
Visa mer
Cable ∅ max 3.0mm
Cable ∅ min 2.0mm
Colour Black (BK)
Material Chloroprene Rubber (CR)
Pack Cont. 1
Package Content packed in bag
PART DESCRIPTION CABLELOK-R15D-01
Port R
Port count 2
Product Family R Port Series
Product Group R Port Cablelok
Short Description Cablelok R15D(2) 2.0-3.0mm x1

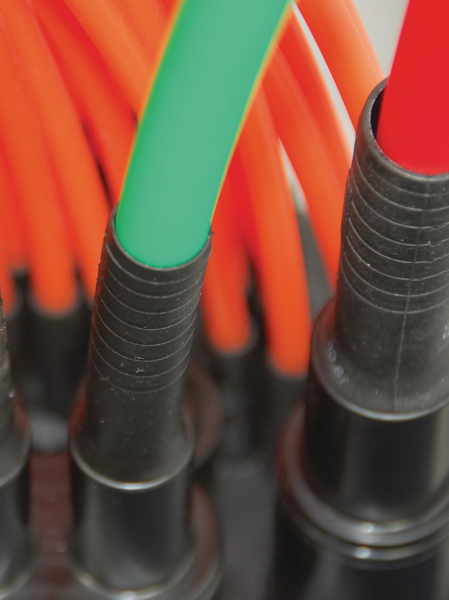

Technical Description The R Port Cablelok is a mechanical seal manufactured from external grade flexible polychloroprene. There are 11 Cablelok's which cover a cable range of 1.7mm – 9.5mm including three multi-hole versions to allow two cable drops from the same port and a port plug for blocking unused R sized drop ports.
ELV compliant (Article 4 - 2) YES
Country of Origin GB
Customs Number 40169300
GTIN-13 / EAN 5022660134210
Packaging 1 - Weight (kg) 0.0028kg
ETIM 7.0 Key EC000879
ETIM 8.0 Key EC000879
ETIM 9.0 Key EC000879
UNSPSC Key 39121461
